Modern Design Style Light Steel Frame Structure House for Outdoor Prefabricated Metal Modular Houses

Name: Modern Design Style Light Steel Frame Structure House for Outdoor Prefabricated Metal Modular Houses
Brand: Xin Yu
Price: 50.00 USD

China Modern Design Style Light Steel Frame Structure House for Outdoor Prefabricated Metal Modular Houses wholesale

Type : Prefabricated house, Light Steel Structure Frame

Feature : Durable, Eco Friendly, Fast Build

Shape : ROUND, Square

Warranty : 1 Year

After-sale Service : Online technical support

Application : Outdoor

Place of Origin : Shandong, China

Brand Name : Xin Yu

Model Number : Prefabricated house

Material : Steel

Use : House

Product Type : light steel house

Design Style : Modern

Keyword : Moduler Homes

Color : Customized Color

Size : Customers Request

Advantage : Environmental Protection Low Cost Recycle

Style : Modern Simple

Function : Portable Room Outdoor

Design : Costom Requests

Structure : Galvanlized Steel Frame

MOQ : 1 set

Price : $50.00/square meters 100-249 square meters

Payment Terms : T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union, Cash, Escrow

Contact Now

Modern Design Style Light Steel Frame Structure House for Outdoor Prefabricated Metal Modular Houses

Flat roofed mobile houses use the strength of sandwich wall panels and roof panels, connected by nails, bolts, self-tapping screws, etc. to form a fixed mobile house system. The mobile house uses a light steel frame as the main structure, arranges the space with a standard module, and uses sandwich panels, PU tiles and roofing systems. It is easy to install and transport, simple and beautiful and can be reused, making temporary buildings an industrialized product.

Quality Service

1. We accept any drawings or samples to develop new products. 2. Any small problems will be solved in the shortest time. 3. We always provide relevant technical support and quick response, all your inquiries will be replied to within 12 hours. 4. We can ship within 7 days. 5. One-stop service, we can provide electrical, plumbing, toilet, shower, sink, and everything you want. 6. OEM service.

Material List For One Storey Prefabricated House
Main Steel Frame
Steel column	Fabricated by Q235 Steel, 8080 or 100100 or 120120 or 150150 Square Tube, alkyd paiting, two primary painting, two finish painting.
Triangular Steel structure roof	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Roof Purlin	Fabricated by Q235 Steel, C80, C100, C120, C140 Section steel, alkyd paiting, two primary painting, two finish painting.
Ordinary bolt	4.8S,Zincification
Roof and Wall
Roof Panel	Insulated Steel Sandwich Panel wall Panel width: 950mm; Thickness: 50-1200mm. Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm Insulation: Polystyrene, Rockwool or Polyurethane Density of Rockwool: 120Kg/m3 Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 Density of Polyurethane: 40Kg/m3
Wall Panel	Insulated Steel Sandwich Panel wall Panel width: 950mm; Thickness: 50-1200mm. Powder coated Color steel on both sides: 0.4mm/0.5mm/0.6mm Insulation: Polystyrene, Rockwool or Polyurethane Density of Rockwool: 120Kg/m3 Density of Polystyrene: 12Kg/m3, 16KG/M3 20KG/M3 Density of Polyurethane: 40Kg/m3
Edge cover	0.4mmgalvanized Color steel , angle Alu.
Fasteners & accessoreis	Nails\glue ect
Ceiling+Flooring
Ceiling	6mm gypsum board,with steel keel
Plywood	18mm film faced plywood
Floor feather	1.5mm PVC floor leather
Door and window
Door	External door: Insulated with opening dimension 950*2100mm, furnished with lock with 3keys. Inner door: Insulated steel door.
Window	PVC window witn 4mm glass, with screem
Electrical System
Electric cable	lighting 2.5m m2, aircondition: 4.0mm2, BV cable, solid core. Three diferent color
Lights	Double tube fluorescent lamp, 220V,50-60HZ
Switches	Single Switch, with junction box
Socket	16A five hole univesal socket.
Power distribution cabinet	Box+breakers+earth leakage protective device
Plumbing System and Rain Water Drainage System As per building design

Our Advantages

1. Stand heavy rain. 2. Suitable for the southeast asia market. 3. Life in spain: around 15 to 20 years. we can guarantee for 10 years. 4. Fire proof: b level. 5. Thermal conductivity: 0.042 m2·k/w. 6 . Wind load: wind speed 120 km/h. 7. Earthquake resistance: up to richter 8 or as required.

Durable and economical, etc.: Steel frame structure design, the structure adopts special cold-formed galvanized steel components, earthquake resistance level 8 and wind resistance level 12, and the service life is more than 20 years.

We can offers a complete solution for the prefabricated container houses including design, production, installation,after-sales service with multiple application such as: container office, worksite container camp, accommodation containers, storage containers, staff dormitory, Shopping mall, stores, coffee shop, display showroom container, multiple unit bathroom, portable toilet, swimming pools, etc.

1.Q: Could you design a new and unique prefab house for me? A: Of course! We have the most professional design team to integrate your demand to provide you with one-stop customization service. 2.Q: What do I need to provide to build a prefab house? A: It would be better if you could provide a sketch. If not, you just need to tell us your demands, such as area, house use, etc., and we can make the corresponding design for you. 3.Q: How to get the quotation of the project? A: If you can provide design drawings and required materials, we can quote according to your needs. Besides, If you don't have a drawing, we can also offer you a quotation after telling us the purpose and demand of your prefabricated house. 4.Q: How to control the cost of building a prefab house? A: After confirming the design plan, you can choose the corresponding building materials according to your own need since each material has its own price. 5.Q: what are the advantages of prefab house? A: It is prefabricated in the factory, which does not take up construction time on the site; it can be modularly assembled, which is convenient for transportation and can be moved to achieve recycled use. 6.Q: What are the uses of this type of house? A: It has multiple applications and can be used as hotels, offices, shops, residences, etc.

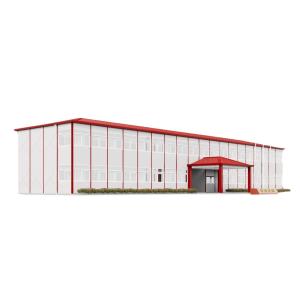

Modern Design Style Light Steel Frame Structure House for Outdoor Prefabricated Metal Modular Houses Images
